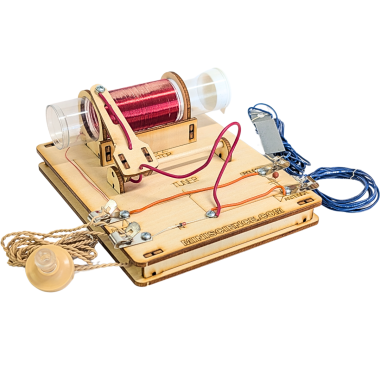

Crystal Radio Kit, Advanced

Construct an advanced AM radio with adjustable tuner design.

SKU: CRADIO

SHOP BY QUANTITY

1 Pack $25.00 10 Pack $220.00 100 Pack $2,000.00 *

Qty:

Total Price:

Add to Cart

Product Specifications

Structure

Laser-cut wooden frame

Coil

Plastic coil cylinder with enameled copper wire

Diode

1N34A germanium diode

Capacitor

120pF ceramic capacitor

Resistor

82kΩ resistor

Earphone

Piezoelectric crystal earphone

Tuning Wire

Flexible red wire for adjustable tuning

Tuner Design

Adjustable coil-based tuning system for AM frequency selection

Antenna/Ground Wire

Long wire, user-cuttable

Accessories

Screws, Fahnestock Clips, sandpaper

Instructions

Detailed build guide included

Applications and Benefits:

Advanced understanding of AM radio and frequency tuning

Adjustable tuner allows hands-on exploration of signal clarity

Ideal for STEM electronics courses and science competitions

Great for hobbyists and self-learners interested in radio tech

Operates without batteries or soldering; classroom-friendly

Caution:

This kit contains small parts and sharp components. Not suitable for children under 8 years without adult supervision. Avoid connecting to external power sources. For educational use only.

FAQ
Q: Can I use regular headphones or earbuds with the Advanced Crystal Radio Kit (CRADIO)? A: No. Standard headphones and earbuds have very low impedance and are not compatible with crystal radio circuits. The Advanced Crystal Radio Kit requires a high-impedance output device, such as a crystal earphone or piezoelectric earphone, to properly detect and reproduce audio from the passive AM signal. Using low-impedance headphones will significantly reduce or eliminate reception. Q: Does the Advanced Crystal Radio Kit (CRADIO) require batteries or external power? A: No. The Advanced Crystal Radio Kit is completely passive and does not require batteries or any external power source. It operates by harvesting energy directly from ambient AM radio waves through the antenna, using a diode to detect the audio signal. Q: Is a ground connection required for the Advanced Crystal Radio Kit? A: A ground connection is not strictly required for basic operation, but it greatly improves signal strength and audio clarity. Using a proper ground along with a long wire antenna allows the radio to capture more signal energy, resulting in better reception. Without a ground connection, performance may be limited depending on local signal strength. Q: Can the Advanced Crystal Radio Kit work without a long antenna? A: The kit can operate with a short antenna only if it is located very close to a strong AM transmitter. For most locations, a longer external antenna is recommended to achieve reliable reception. AM radio wavelengths are long, and longer antennas are more effective at capturing usable signal energy. Q: How does tuning work on the Advanced Crystal Radio Kit (CRADIO)? A: The Advanced Crystal Radio Kit uses an adjustable tuning system based on the interaction between the coil and capacitance in the circuit. By adjusting the tuner, the resonant frequency of the circuit changes, allowing selection of different AM broadcast stations within the standard AM band. Q: What frequency range can the Advanced Crystal Radio Kit receive? A: The kit is designed to receive standard AM broadcast frequencies, typically within the approximate range of 500 kHz to 1600 kHz. Actual reception depends on antenna length, grounding quality, and local broadcast availability. Q: Why does the kit use clips, screws, or modular connections instead of twisted wires? A: Modular connections improve reliability and ease of assembly, especially for beginners and educational use. Crystal radios operate with extremely weak signals, and poor connections can significantly reduce performance. Secure connectors help reduce troubleshooting issues and user frustration. Q: Can the reception or volume be improved on the Advanced Crystal Radio Kit? A: Yes. Reception can be improved by using a longer antenna, adding a proper ground connection, carefully adjusting the tuner, and minimizing nearby electrical interference. Since the radio is passive, audio volume is limited by the available signal energy and cannot be amplified without adding powered electronics. Q: Is the Advanced Crystal Radio Kit safe to use? A: Yes. The kit contains no internal power source and is safe when used as instructed. Normal precautions should be taken when installing antennas or ground wires, especially during thunderstorms. It is recommended to disconnect the antenna and ground during severe weather. Q: Who is the Advanced Crystal Radio Kit (CRADIO) intended for? A: The kit is suitable for students, beginners, educators, and electronics hobbyists. It is designed as a hands-on STEM project that demonstrates fundamental radio principles without requiring soldering or prior electronics experience.

FAQ

Q: Can I use regular headphones or earbuds with the Advanced Crystal Radio Kit (CRADIO)?

A: No. Standard headphones and earbuds have very low impedance and are not compatible with crystal radio circuits. The Advanced Crystal Radio Kit requires a high-impedance output device, such as a crystal earphone or piezoelectric earphone, to properly detect and reproduce audio from the passive AM signal. Using low-impedance headphones will significantly reduce or eliminate reception.

Q: Does the Advanced Crystal Radio Kit (CRADIO) require batteries or external power?

A: No. The Advanced Crystal Radio Kit is completely passive and does not require batteries or any external power source. It operates by harvesting energy directly from ambient AM radio waves through the antenna, using a diode to detect the audio signal.

Q: Is a ground connection required for the Advanced Crystal Radio Kit?

A: A ground connection is not strictly required for basic operation, but it greatly improves signal strength and audio clarity. Using a proper ground along with a long wire antenna allows the radio to capture more signal energy, resulting in better reception. Without a ground connection, performance may be limited depending on local signal strength.

Q: Can the Advanced Crystal Radio Kit work without a long antenna?

A: The kit can operate with a short antenna only if it is located very close to a strong AM transmitter. For most locations, a longer external antenna is recommended to achieve reliable reception. AM radio wavelengths are long, and longer antennas are more effective at capturing usable signal energy.

Q: How does tuning work on the Advanced Crystal Radio Kit (CRADIO)?

A: The Advanced Crystal Radio Kit uses an adjustable tuning system based on the interaction between the coil and capacitance in the circuit. By adjusting the tuner, the resonant frequency of the circuit changes, allowing selection of different AM broadcast stations within the standard AM band.

Q: What frequency range can the Advanced Crystal Radio Kit receive?

A: The kit is designed to receive standard AM broadcast frequencies, typically within the approximate range of 500 kHz to 1600 kHz. Actual reception depends on antenna length, grounding quality, and local broadcast availability.

Q: Why does the kit use clips, screws, or modular connections instead of twisted wires?

A: Modular connections improve reliability and ease of assembly, especially for beginners and educational use. Crystal radios operate with extremely weak signals, and poor connections can significantly reduce performance. Secure connectors help reduce troubleshooting issues and user frustration.

Q: Can the reception or volume be improved on the Advanced Crystal Radio Kit?

A: Yes. Reception can be improved by using a longer antenna, adding a proper ground connection, carefully adjusting the tuner, and minimizing nearby electrical interference. Since the radio is passive, audio volume is limited by the available signal energy and cannot be amplified without adding powered electronics.

Q: Is the Advanced Crystal Radio Kit safe to use?

A: Yes. The kit contains no internal power source and is safe when used as instructed. Normal precautions should be taken when installing antennas or ground wires, especially during thunderstorms. It is recommended to disconnect the antenna and ground during severe weather.

Q: Who is the Advanced Crystal Radio Kit (CRADIO) intended for?

A: The kit is suitable for students, beginners, educators, and electronics hobbyists. It is designed as a hands-on STEM project that demonstrates fundamental radio principles without requiring soldering or prior electronics experience.
