Gear Box Kit

Multi-ratio gear box kit for versatile uses and adjustable power.

General Information

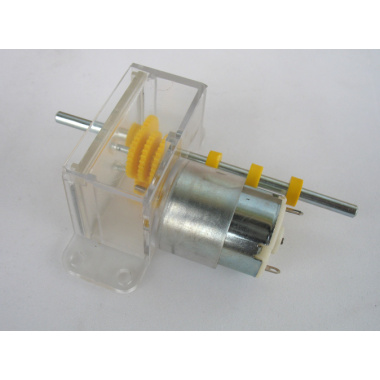

Gear Box Kit is a unique gear box system constructed around a motor that can create a range of gear ratios, making it suitable for a wide range of applications. The kit consists of:

• 1 3-6 Volt, 9600 RPM motor
• 2 shrink-to-fit gear box rings
• 1 spacer/axle cap tubing
• 4 42/10 tooth gears, 7/8″ (22.2mm) O.D.
• 2 60 tooth gears, 1-1/4″ (31.8mm) O.D.
• 1 16 tooth pinion, 11/32″ (8.7mm) O.D.
• 5 5/64″ (2.0mm) O.D. x 3″ (75mm) long axles

All shaft holes are .080 (2.0mm) to fit the furnished axles as well as the furnished motor. Assembly only requires warm water.

Key Features

• Multi-ratio gear box kit
• Can create a range of gear ratios from 4:1 to 256:1
• Enables simultaneous drives from each end of the gear box
• Clear polycarbonate frame for easy visualization
