Revolution Counter, 4+1 Digits, Yard and Meter

Rotary Length Counter for machines, with 1:3 gear ratio. with 2 Yard Wheels
SKU: MSZ96FW
*
Qty:
Add to Cart Buy Now
Print

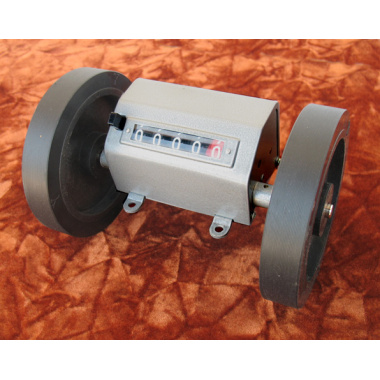

Revolution Counter, 4+1 Digits, Rotary Length Counter with 2 Yard Wheels

Rotary revolution counter with 4+1 digits designed for machine-based length measurement of textiles, cables, paper, leather, and more. The MSZ96FW model includes 2 yard wheels and uses a 1:3 gear ratio for precision. Each unit measured requires three full rotations. The red digit displays fractional units, while four black digits show complete units. Lightweight design supports easy installation on machines. Suitable for production and packaging applications. For metric measurement, meter wheels are available separately on our website.

Need meter measuring wheels?

visit us here.Meter Wheel (Metric System)

Product Specifications

Display Digits 4 black digits + 1 red digit (6.5 mm each)
Gear Ratio 1:3 (three rotations per unit)
Weight 0.5 kg
Reset Method Push knob (left side)
Measuring Capacity 0–9999 yards
Maximum Speed 200 rpm
Temperature Range -15 °C to +55 °C
Box Dimensions 172.5 mm × 64.5 mm × 45.7 mm
Mounting Base 4-screw, 4 mm metal base
Base Length 80 mm
Base Width 72 mm
Height 50 mm
Overall Shaft Length 158 mm
Wheel Diameter 3.82 inches (97 mm) — Yard wheels

Applications and Benefits:

  • Measures length of textiles, cables, paper, leather, and more
  • Includes 2 yard wheels for accurate yard-based measurement
  • High visibility display for production environments
  • Compatible with machinery in packaging and textile industries
  • Meter wheels available separately on the website

Caution:

Ensure correct wheel type is used based on unit preference (yard or meter). Install securely to avoid misalignment during operation.
